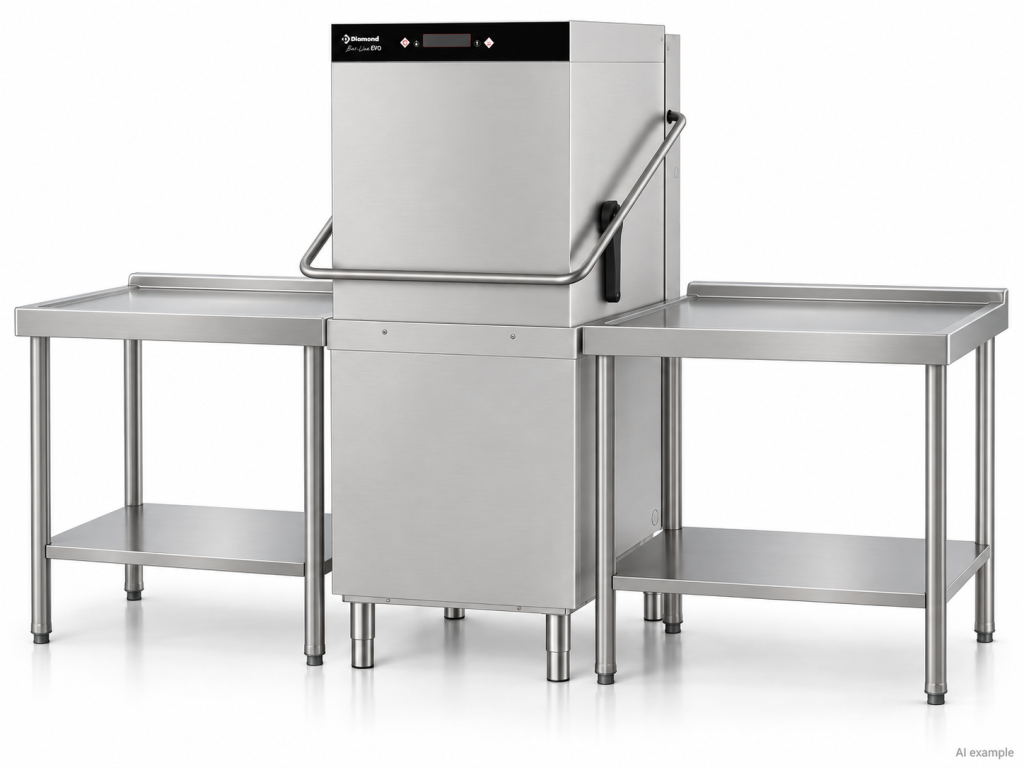

The Diamond hood dishwasher complete set offers an efficient and hygienic solution for professional kitchens. This set consists of a hood dishwasher, a 500x500 mm "Full Hygiene" basket, and an entry/exit table. With a generous loading height for plates up to 450 mm and an impressive capacity of 20 to 30 baskets per hour, this system guarantees fast and thorough cleaning of the dishes.
The dishwasher is equipped with an advanced three-phase system for washing, draining, and rinsing. Both a drain pump and a rinse pump (with atmospheric boiler) are included as standard to ensure seamless operation.
Robust construction and advanced features:
- Fully double-walled construction manufactured from AISI 304 stainless steel.
- Rotating upper and lower wash and rinse arms, also entirely made of stainless steel.
- Self-cleaning stainless steel nozzles and a fully pressed tank (20 liters - 2.5 kW) with an integral stainless steel tank filter.
- External piping outside the laundry room and a polypropylene pump filter.
- A high-efficiency dual-flow wash pump that guarantees significant energy savings.
- The insulated double-walled hood features a smooth opening and closing system via lifting rods.
- A front-accessible touchscreen control panel with a large color LCD display and backlight for easy operation and maintenance.
Various washing programs and hygiene standards:
The machine offers numerous washing programs suitable for various types of dishes such as plates (standard, medium, intensive), glasses (standard, intensive, plastic), cups, pans, and even bottles with a special support kit for 8 bottles (wash/rinse or rinse only). In addition to a continuous wash program, the dishwasher also features an advanced Sanitisation program for maximum hygiene.
Optimal operational management and safety:
- Integrated automatic tub water drainage function in the control panel, eliminating the need for manual operations.
- Automatic tub filling and a check valve.
- Hot water flushing with a water consumption of 2 liters per cycle and a stainless steel boiler (7 liters - 8 kW).
- Adjustable tub and boiler temperature, a microswitch that stops the cycle when the hood is opened, and a safety thermostat.
Intelligent technologies for superior performance:
- EED (Energy Saving) : Designed for low consumption of energy, water, and detergents thanks to a closed tank and patented filter that keeps the wash water at the correct temperature.
- TCD (Control thermostat) : Guarantees flushing at 85°C.
- DRD (Accelerated Preheating) for rapid operational readiness.
- DID (Automatic Diagnosis) : Automatically detects irregularities for quick troubleshooting.
- ADD (Temperature Display) : Displays the temperature of the tub and boiler, in accordance with HACCP standards.
- DDD (Partial tank emptying) : Efficient evacuation of water via the bottom of the tank.
- RGD (Constant flushing temperature) : Ensures a stable temperature of 85°C and constant pressure.
- BTD (Break tank) : An anti-pollution device (type AB according to British standards) that prevents backflow to the water distribution system and guarantees constant pressure for optimal hygiene and drying results at 85°C.
- CAD (Self-cleaning cycle) for easy maintenance.
- Equipped as standard with a peristaltic dispenser for rinse aid and a peristaltic dispenser for liquid detergent.
These machines are also guaranteed to be suitable for use with an osmosis water connection.
SANITIZATION ADVANTAGE : This advanced sanitization program offers an additional guarantee of hygiene through a thermal disinfection phase. The dishes are heated to a temperature of over 70°C and maintained at this temperature for a sufficiently long period to achieve an A0 lethality index of over 30 (in accordance with sanitary standard EN 15883). This standard ensures the elimination of specific germs and bacteria. The "A0" value is adjustable as desired, with the cycle time adjusting automatically. The level of hygiene achieved with this cycle significantly exceeds that of traditional washing cycles.
Supplied as standard with: 1 plate basket, 1 universal basket, 1 measuring cup, and all necessary connection hoses for water supply and drainage.
